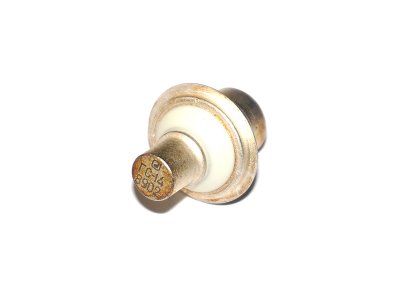

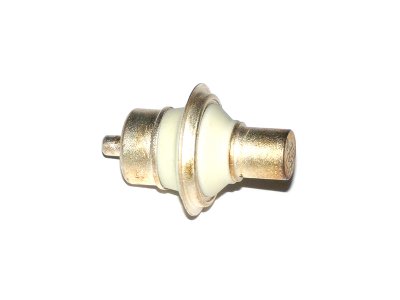

The GS-14 titanium-ceramic triode generates, amplifies and multiplies oscillations on the centimetric and decimetric wavelength ranges.
Application field: generator and high frequency amplifier;
Envelope: titanium-ceramic, silver coated leads;

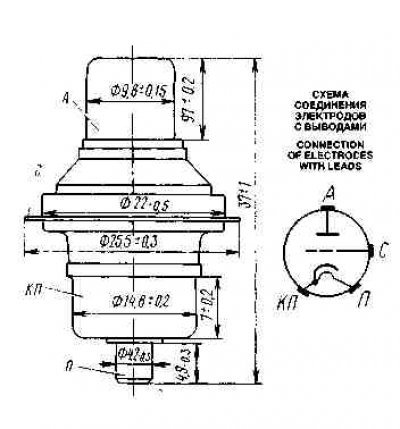

Dimensions (D x H), mm: 25 x 37;
Mass, gr: 25;
Filament voltage, V: 6.3;
Filament current, A : 0.73 (+/-) 0.07;
Typical Anode current, mA: 30;
Typical Anode voltage, V: 350;
Mutual conductance, mA/V: 20;
Max anode power, W: 88;
Maximum operating frequency: about or over 4 GHz;
Ambient operating temperature: -60 ... +100 deg. Celsius;
Max envelope temperature: +200 deg. Celsius;
Base: special type, four leads, anode located on top, grid in the middle, cathode and filament at bottom;
Each tube contains approximately 0.25g Silver (Ag).
