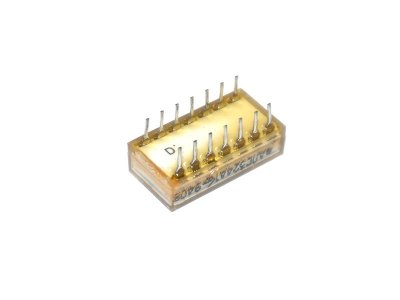

ALS-324A LED indicator display was designed for a visual indication. NEW, NOS!

Technical parameters of ALS-321B:

  • Glow color: red;
  • Number of segments: 7;
  • Sign height: 7.5 mm;
  • Wavelength, λ: 650-670 nm;
  • Luminous intensity, Iv: 0.15 mcd;
  • Forward current, If: 20 mA;
  • Limiting forward current: 25 mA;
  • Forward voltage, Vf: 2.5 V;
  • Operating temperature range: -60°C ... +70°C.
