» Indicator tubes » IV- indicator tubes » IV-15 / DM160 / 6977 tiny VFD tube
IV-15 / DM160 / 6977 tiny VFD tube
Manufacturer: Gazotron factory
IV-15 / DM160 / 6977 tiny VFD tube
IV-15 / DM160 / 6977 tiny VFD tube
IV-15 / DM160 / 6977 tiny VFD tube
IV-15 / DM160 / 6977 tiny VFD tube
$3.00/ea
Add quantity:
Available quantity:
more 100 pc.
We accept payments by:
Average delivery time to United States is 18 days.

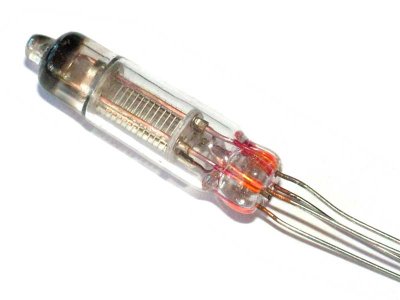

The IV-15 is the Soviet analog of the popular DM160 / 6977 miniature tuning indicator tube. Like the DM160, the IV-15 does not have a variable length display, only the brightness can be changed. With an envelope height of 25mm the IV-15 is slightly larger than the DM160, but is still a very tiny device.

  • Glow color: green
  • Voltage of filament: 0.6V ... 0.9V
  • DC grid voltage, min: -2V
  • DC anode voltage, max: 55V
  • Current of filament, max: 1mA

    • Technical Specifications Technical Specifications
