ILC7-4/7 VFD tube
ILC7-4/7 VFD tube
Manufacturer
ILC7-4/7 VFD tube
ILC7-4/7 VFD tube
ILC7-4/7 VFD tube
$
4.00
Add quantity:
Available quantity:
more
50
pcs
We accept payments by:

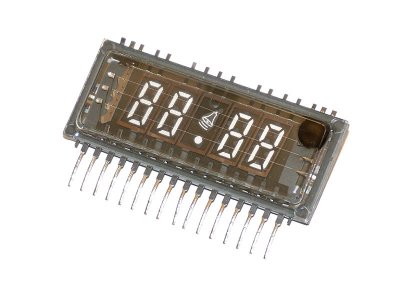

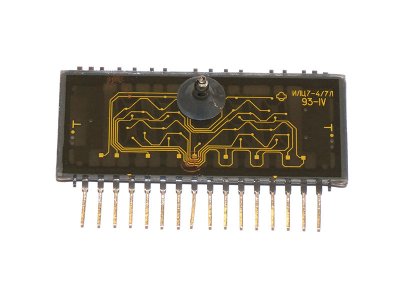

ILC7-4/7L is a multi-segment VFD (Vacuum Fluorescent Display) clock indicator. ILC7-4/7 have four 7-segment digits, point and bell symbol.
Characteristics of the ILC7-4/7L indicator:
  • Color: Green;
  • Display field size: 52 x 14 mm;
  • Size of the digits: 12 x 5 mm;
  • Nominal brightness: 1000kd/m²;
  • Anode voltage: 27V;
  • Grid voltage: 15V;
  • Filament voltage: 2.25V - 2.65V;
  • Minimum operating time: 30000h;
  • Mass: 40g;
  • Sign size: 5 x 12 mm;
  • Indicator dimensions (without pins): 70 x 28 x 8 mm;
  • Indicator overall depth: 19 mm;
  • Temperature range: -45°C ... +70°C.
