P214V / AD1203 germanium PNP transistor - wholesale price!!!
P214V / AD1203 germanium PNP transistor - wholesale price!!!
P214V / AD1203 germanium PNP transistor - wholesale price!!!
P214V / AD1203 germanium PNP transistor - wholesale price!!!
P214V / AD1203 germanium PNP transistor - wholesale price!!!
P214V / AD1203 germanium PNP transistor - wholesale price!!!
$1.00/ea
Add quantity:
min. order quantity:
10 pc. and more
Available quantity:
more 500 pc.
We accept payments by:
Average delivery time to United States is 16 days.

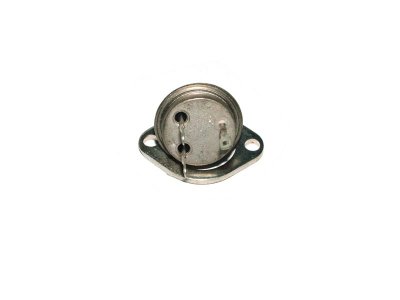

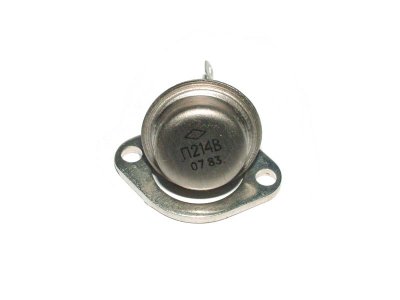

P214V transistor PNP germanium with snap ring. Equivalent to the AD1203. Designed for use in switching devices, the amplifier output stage low-frequency DC-DC converters.

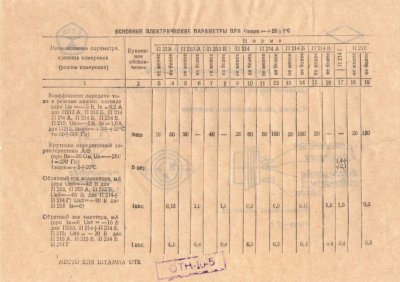

The main technical characteristics of the transistor P214V:
  • The structure of the transistor: PNP;
  • Pk t max - Dissipated power collector with heat: 10 W;
  • fh21e - Cut-off frequency of the transistor current gain for the common-emitter: at least 0.2 MHz;
  • Ukbo samples - Breakdown voltage collector-base for a given reverse current collector and emitter open circuit: 60 V;
  • Uebo samples - Breakdown voltage emitter-base junction reverse current at a given emitter and collector open circuit: 10 V;
  • Ik max - Maximum DC Collector Current: 5 A;
  • Ikbo - Reverse collector current - the current through the collector junction reverse voltage for a given collector-base and open emitter output: 1.5 mA;
  • h21E - Static current transfer ratio for the common-emitter large-signal: more than 20;
  • Rke us - saturation resistance between the collector and emitter: no more than 0.3 ohms

    Min. order quantity is 10 pcs.
