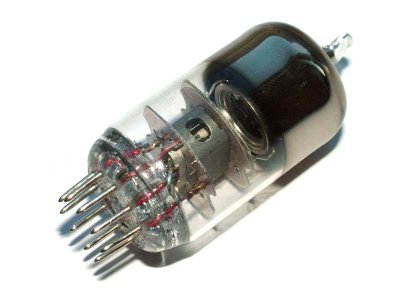

The 6J9P-E high-frequency steep-characteristic pentode has been designed for use in input stages of wide-band amplifiers of electronic devices. Equivalent to the E180F / 6688.

Name: 6J9P-E (6Zh9P-E)

Type: HF pentode, hi-durable, long life

Application: RF and IF voltage amplification in wide-band amplifiers

Cathode type: oxide, indirect heating

Envelope: glass, miniature

Mass, g: 15

Filament voltage, V: 6,3

Filament current, A: 0,275-0,315

Anode voltage, V: 150

Anode current, A: 0,011-0,019

Anode power, W: 3

Grid2 voltage, V: 150

Grid3 voltage, V: 0

Steepness, mA/V: 14,0-21,0

Reverse grid current, uA: 0,05

Microphonic noise, mV: 40

Socket type: rsh8
