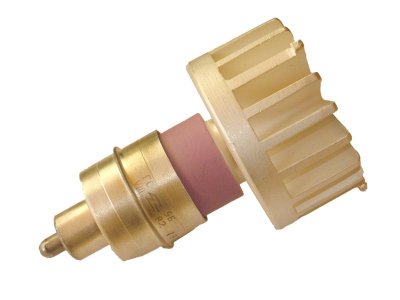

The GS-9B microwave triode is used for RF voltage generation in external-feedback oscillators designed for continuous operation in the decimeter wavelength range down to 9cm. The triode is available in two variants: with heat sink, for forced air cooling (GS-9b), and without heat sink, for other types of cooling (GS-90b). The GS-9b is physically identical to the GI-6b and GI-7b, but several electrical parameters are different.

Name: GS-9B

Type: triode

Cathode type: oxide, indirect heating

Application field: oscillation in UHF band in continous mode in external feedback generator

Brief application: HF oscillation

Cooling method: forced air

Dimensions: 110.5mm x 65mm

Mass: 330g

Filament voltage: 12.6 V

Filament current: 1 - 1.2 A

Mutual conductance: 15 to 24 mA/V

Output power: 300 W

Maximum anode voltage: 10 kV

Maximum operating frequency: 100 MHz

NOS & NIB
