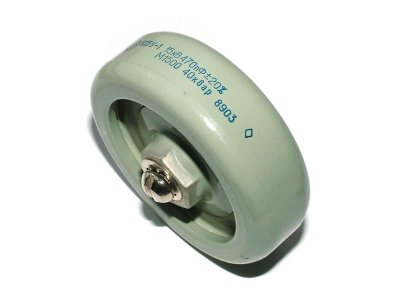

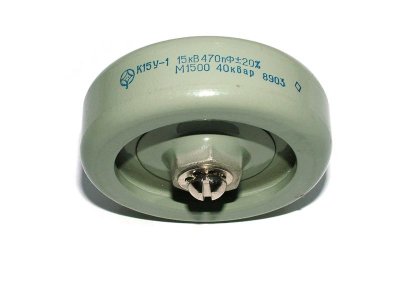

K15Y-1 15kV 470pF 40kVar ceramic HV doorknob capacitor
K15Y-1 15kV 470pF 40kVar ceramic HV doorknob capacitor
K15Y-1 15kV 470pF 40kVar ceramic HV doorknob capacitor
K15Y-1 15kV 470pF 40kVar ceramic HV doorknob capacitor
$6.00/ea
Add quantity:
Available quantity:
more 100 pc.
We accept payments by:
Average delivery time to United States is 19 days.
Russian military K15Y-1 15kV 470pF 40kVar ceramic high voltage doorknob capacitor. Using in powerful radio equipment working in continuous high frequency mode in direct-current circuits.

  • Reactive power: 40 kVar;
  • Insulation resistance, min: 10000 MOhm;
  • Operation temperature range: -60 ... +155C;
  • Relative air humidity, max: 98%;
  • Guaranteed accrued work-time: 25000 hours;
  • Size (height x diameter): 20mm x 63mm;
  • Weight: 180 gr.
