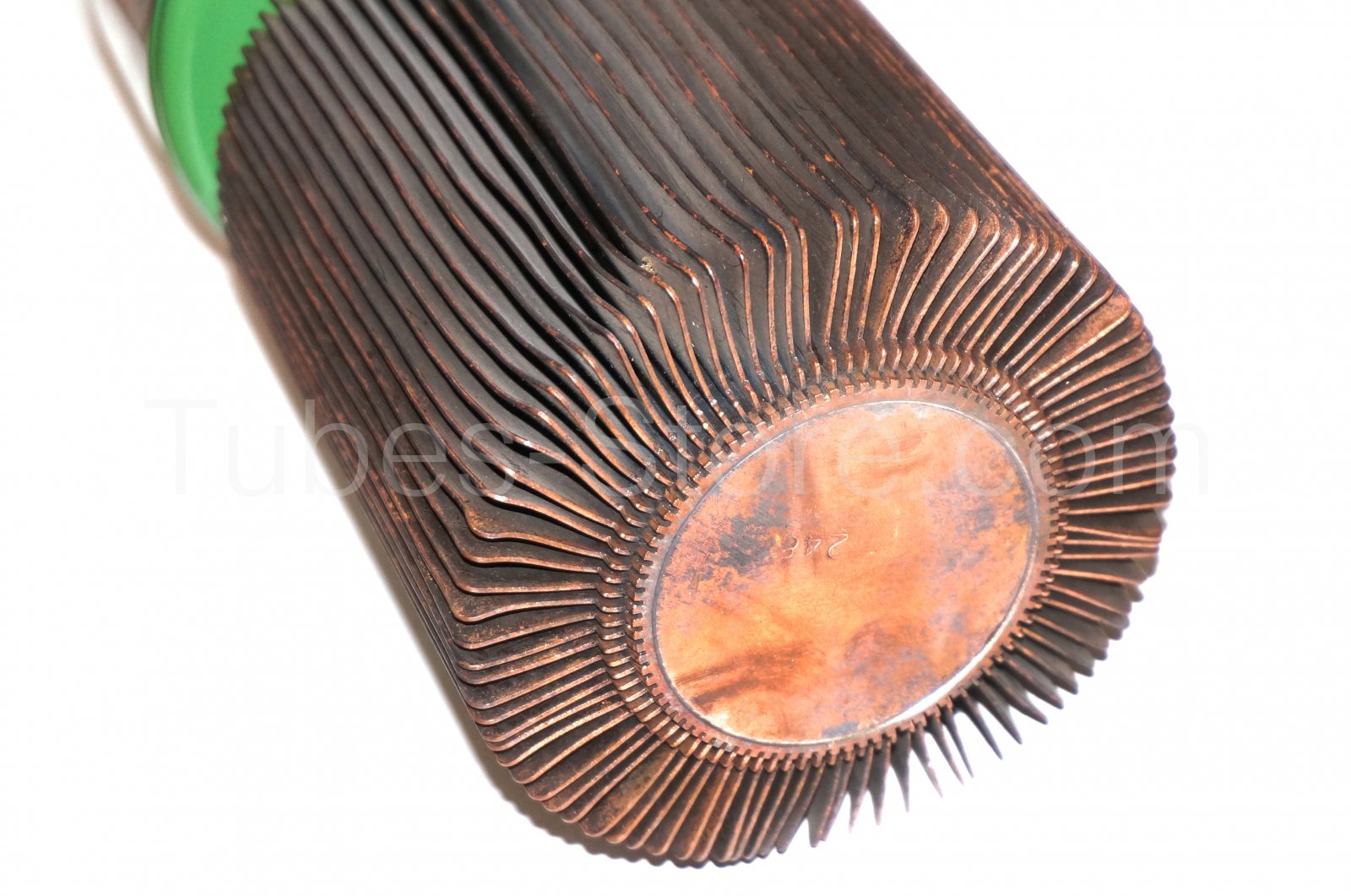

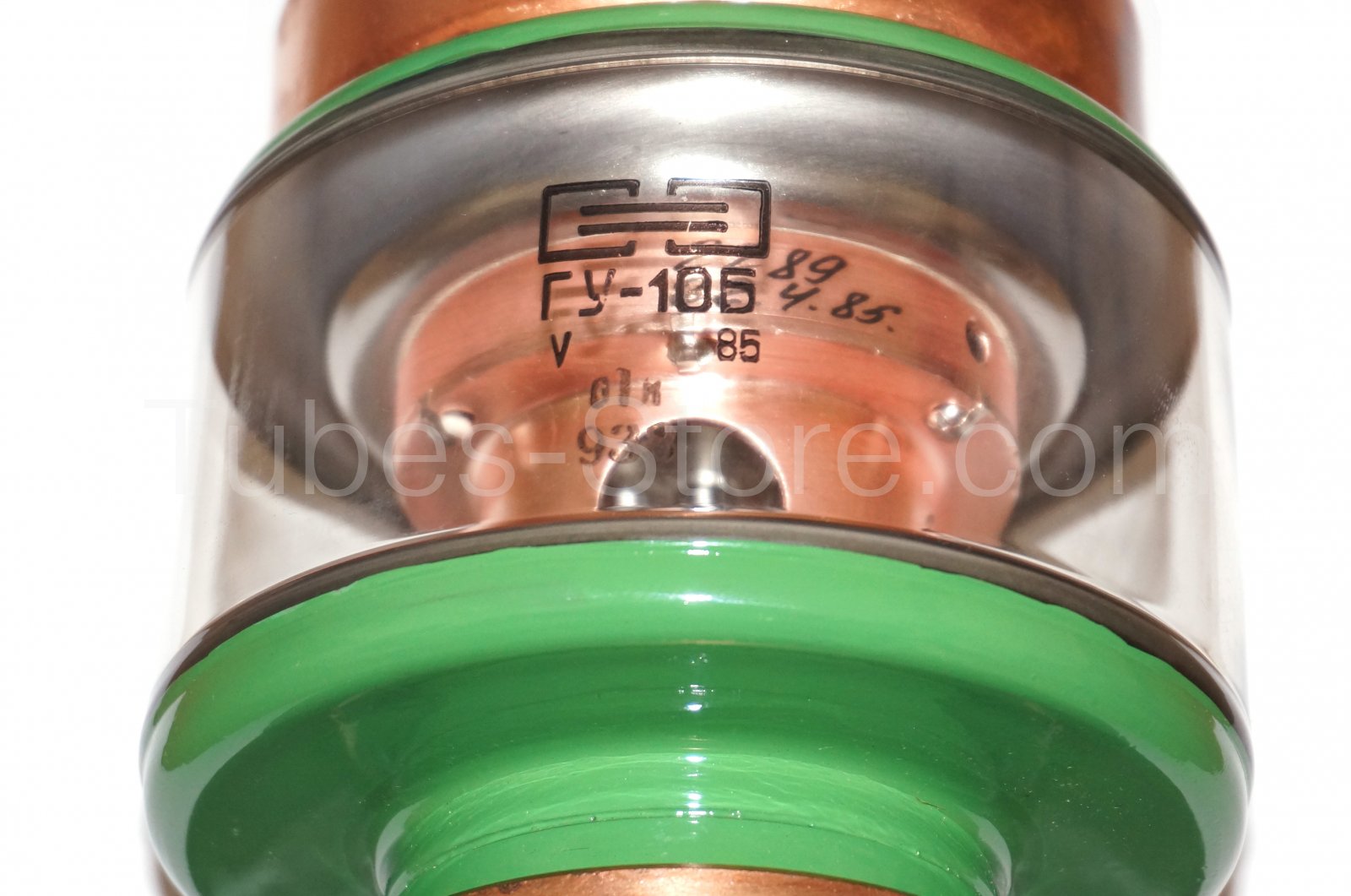

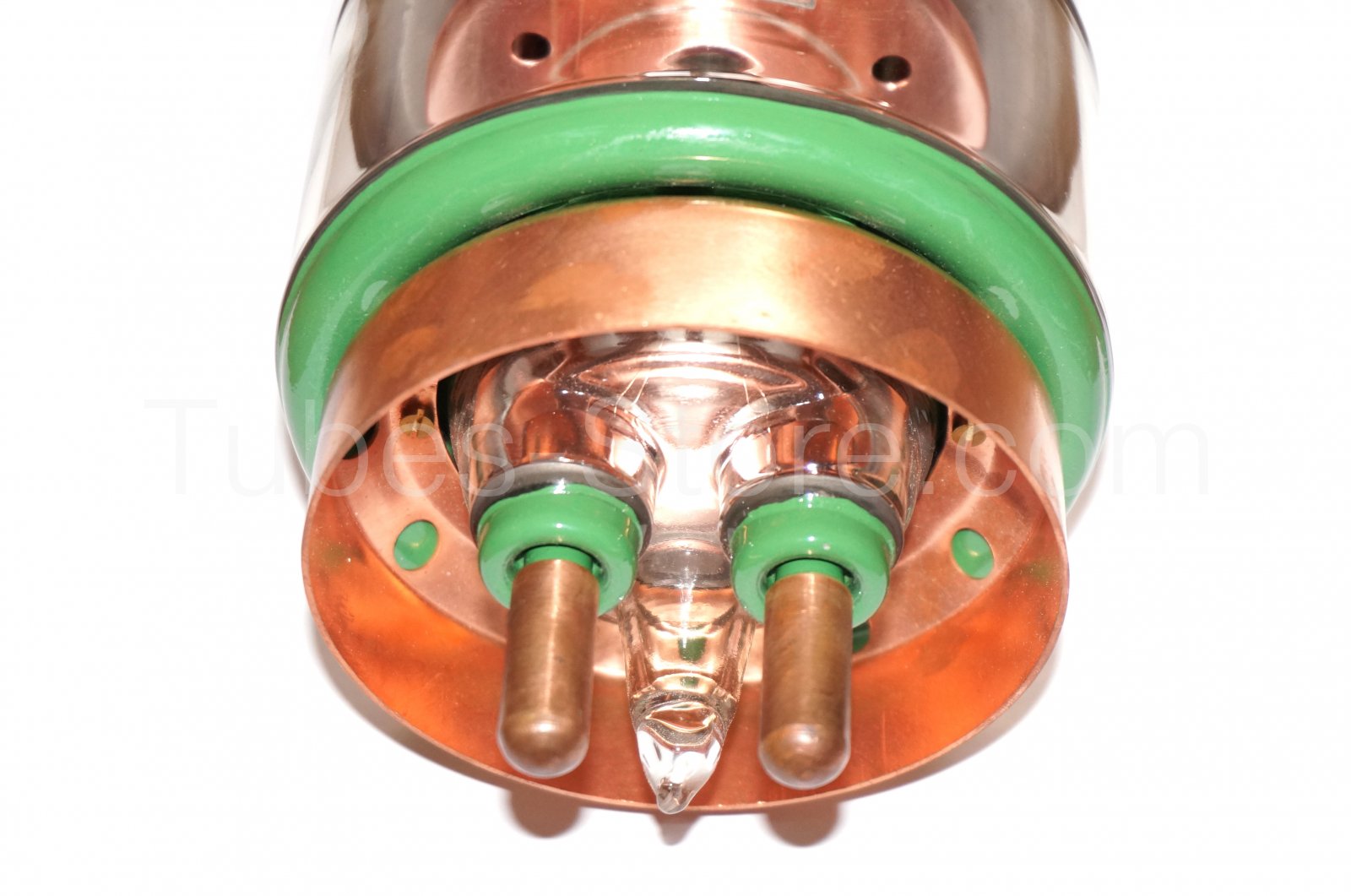

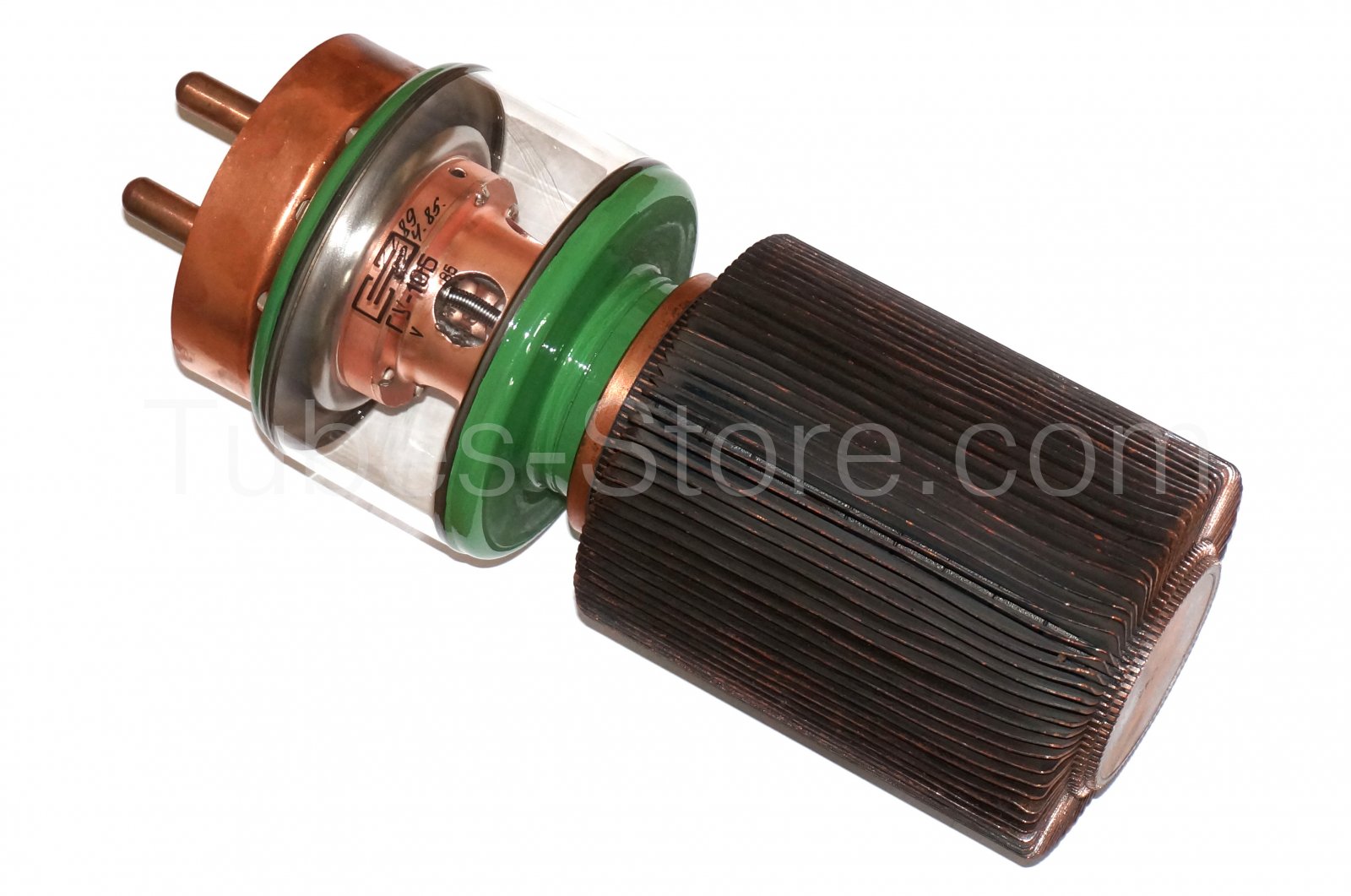

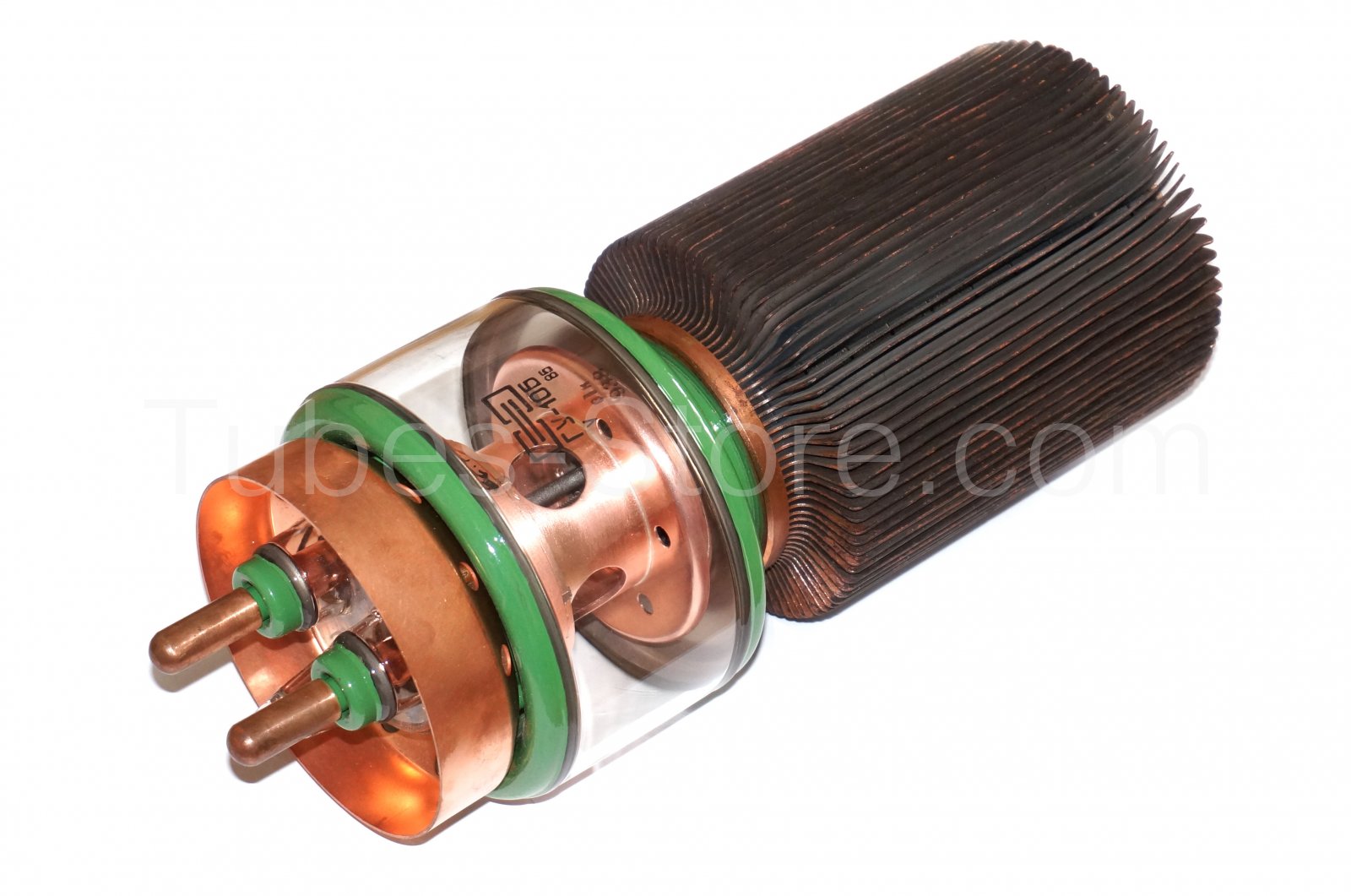

GU-10B / GU10B power triode 10kW tube
GU-10B / GU10B power triode 10kW tube
GU-10B / GU10B power triode 10kW tube
GU-10B / GU10B power triode 10kW tube
GU-10B / GU10B power triode 10kW tube
GU-10B / GU10B power triode 10kW tube
GU-10B / GU10B power triode 10kW tube
$
300.00
Add quantity:
Available quantity:
last
9
pcs
We accept payments by:
  • Type: GU-10B, triode;
  • Application: Amplification, generation;
  • Envelope: glass to metal;
  • Cooling: forced air;
  • Size: 330mm x 128mm;
  • Mass: 6.0kg;
  • Filament voltage: 7V;
  • Filament current: 70 to 80A;
  • Mutual conductance: 15 to 25mA/V;
  • Gain coefficient: 45 to 55;
  • Output power: 10kW;
  • Maximum anode voltage: 8kV;
  • Maximum operating frequency: 26MHz.
