6N16B-V MELZ double triode miniature tube
Manufacturer: MELZ factory
6N16B-V MELZ double triode miniature tube
$3.00/ea
Add quantity:
Available quantity:
more 50 pc.
We accept payments by:
Average delivery time to United States is 19 days.
6N16B-V double triode tube is best used for amplification stages where not so big amplification factors are needed but high driving capabilities and also can be used as a cathode follower. It may be compared to a 12AT7 or a 6SN7 and it will work also with a supply voltage of +100VDC up. Made by MELZ factory.

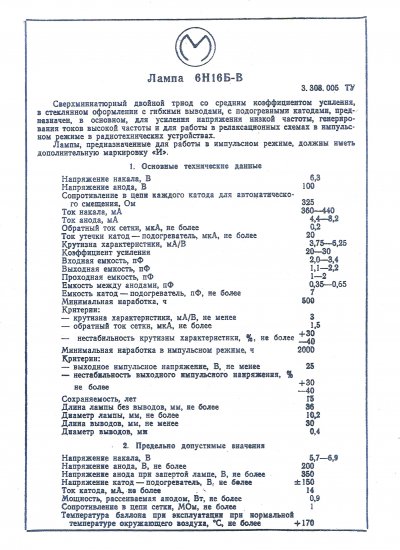

  • Name: 6N16B-V;
  • Type: Double triode, hi-durable;
  • Application: LF voltage amplification and HF oscillation;
  • Cathode type: oxide, indirect heating;
  • Envelope: glass, miniature;
  • Mass, g: 4;
  • Filament voltage, V: 6,3;
  • Filament current, A: 0,36-0,44;
  • Anode voltage, V: 100;
  • Anode current, A: 0,0046-0,0082;
  • Anode power, W: 0,9;
  • Steepness, mA/V: 3,75-6,25;
  • Reverse grid current, uA: 0,2;
  • Microphnic noise, mV: 75;
  • Gain: 25-30;
  • Socket type: flexible.
